Partition Steel Framing

Table of Contents

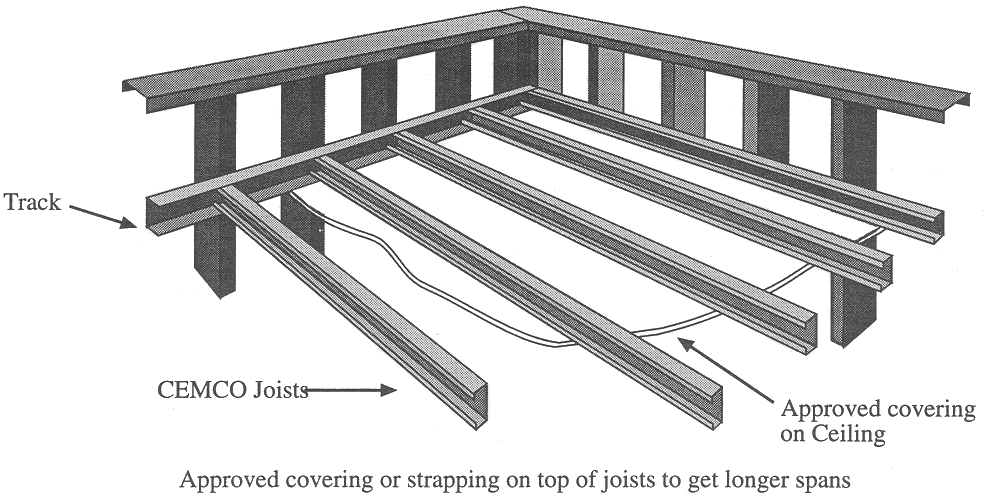

RECESS CEILING

Recess Ceiling immage

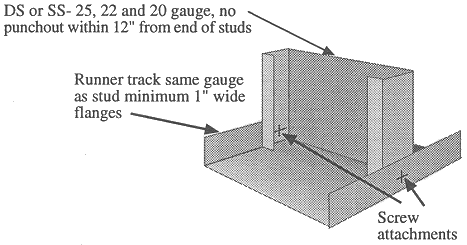

NON-LOAD BEARING PARTITION COVERED ONE SIDE

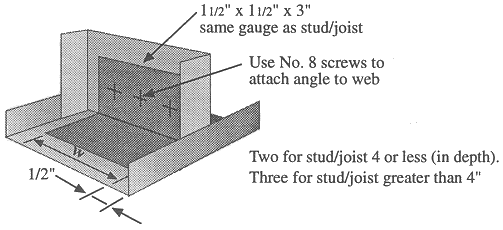

TYPICAL WEB STIFFENERS

When track is attached directly to stud flange, a standard No. 6 X 7 1/16" pan head sheet metal screw may be used. Any combination of the above may be used in the erection of a completed wall assembly.


The information regarding the attachments are not part of the ICBO evaluation report.

Page 55
