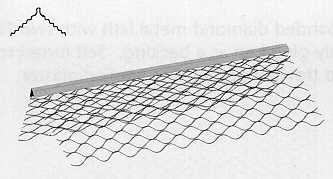

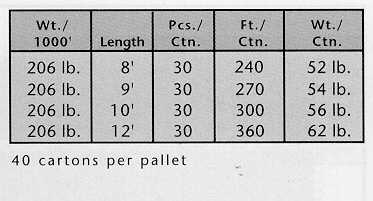

An expanded 2-5/8" flange cornerbead which can be easily flexed over irregular or uneven corners. A solid metal nose provides rigidity and a die straight screed for straight corners.* [Table]

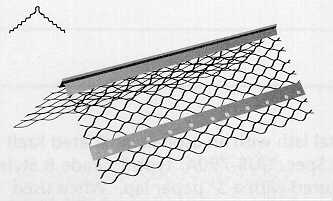

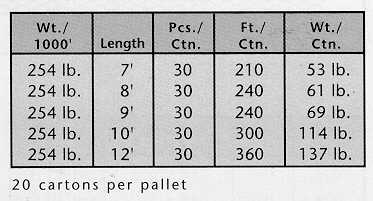

NO. 2A REINFORCED FLANGE CORNER BEAD An expanded flange cornerbead with extra long (3-1/4") expanded flange. It has a steel rib running the length of the bead to provide nail holes and extra rigidity. [Table]

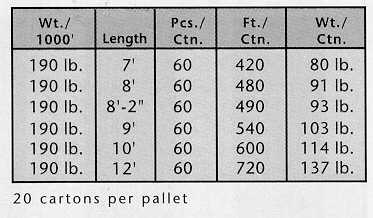

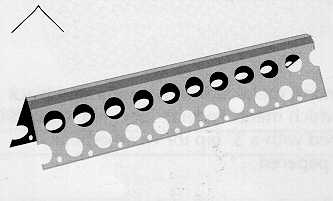

NO. 4 SHORT FLANGE CORNER BEAD A general purpose interior corner plaster bead most commonly used over gypsum plaster board. Provides a neat straight corner.[Table]

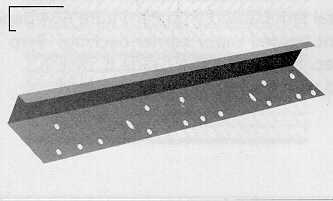

NO. 66 SHORT FLANGE CASING BEAD

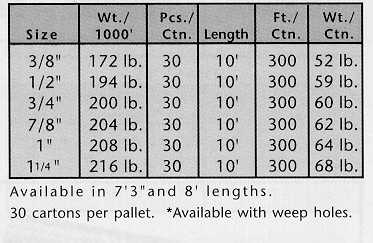

All ground casingbeads have a short 90° turn at the plaster surface to neatly terminate plaster at the end of a wall or when it adjoins a dissimilar material. Manufactured with a slight arch in the nailing flange to assure a tight fit.* [Table]

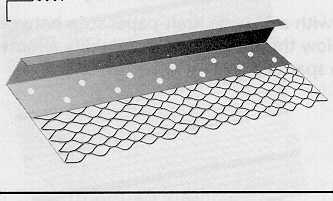

NO. 66 EXPANDED FLANGE CASING BEAD
Expanded flange casingbead also has a short 90° turn at the plaster surface for a neat finish. It also provides an extra long expanded metal flange for tie on application and greater plaster key. Most commonly used with metal lath construction.* [Table]

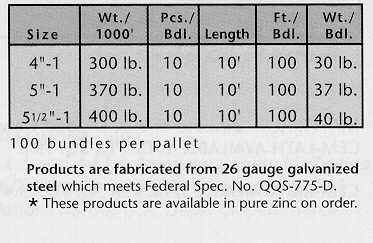

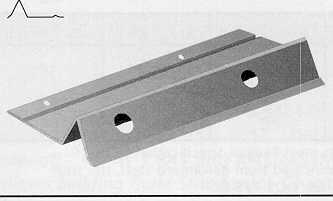

NO. 7 FOUNDATION SILL SCREED
Commonly called FHA screed because it meets FHA requirements. Nailed or stapled to the sill plate line provides a straight line stucco stop. Prevent stucco from contacting damp earth. Holes are provided in the 7/8" ground to dispurse water. Also available with 1 3/8" ground.
